ASN-690S – Automatic Serging Machine
Super-high-speed serging machine developed to achieve a simple structure and ease of use
To fully support the operator so that he/she can carry out serging speedily, the machine comes in two different types; the long-table type and the short-table type which permits easy handling of the material.
18
Items sold in last 3 minutes
Subscription successful
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
20
People watching this product now!
Description
Product features
-
Super-high-speed serging machine developed to achieve a simple structure and ease of use
The machine is applicable to the over casting of material fabrics cut into various jeans, pants and skirt shapes.
-

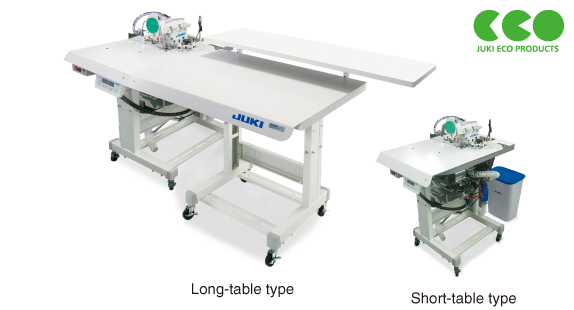

The machine comes in two different types
To fully support the operator so that he/she can carry out serging speedily, the machine comes in two different types; the long-table type and the short-table type which permits easy handling of the material.
The table shape of the short-table type machine permits easy handling of the material to perform serging of a long material even when the work space is small.
-
The machine is equipped with the super-high-speed overlock machine head MO-6904S
The machine achieves the high-speed performance of up to 8,000 sti/min to promise increased productivity. The machine performs serging according to the material used, is capable of sewing with reduced thread tension and promises consistent seam quality free from slip-off seams at curved parts of the material.
-
Flexible cloth guide
The cloth guide can easily be adjusted in height according to the material to be used without using a tool. It eliminates the troublesome changing of spacers.
-
Looper cleaner
A dust extractor is equipped as standard in the upper looper arm section where dust is likely to gather. It helps prevent dust from accumulating inside the cloth chip cover.
-
Micro-lifter device
The machine is provided as standard with a micro-lifter device which adjusts the lifting amount of the presser foot to the material thickness to achieve improved seam quality, while preventing puckering and material damage.
Basic performance
-
Air-blow table
The machine comes with an air-blow table, which issues a jet of air from its air nozzles at three locations to contribute to smoother handling of the material.
-
Easy-to-use stacker switch
The stacker automatically actuates according to the preset number of seams. In addition, the stacker can also be actuated by operating the large easy-to-press manual stacker switch.
Specification
| Model name | ASN-690 |
|---|---|
| Machine head | MO-6904S (Super-high-speed, 1-needle overlock machine) |
| Application | Serging of skirts, pants, jeans, etc. |
| Max. sewing speed | 8,000sti/min* |
| Stitch length | 0.8~4mm |
| Overedging width (mm) | 4.0, 4.8, 5.6 |
| Differential feed ratio | For gathering 1:2 (max. 1:4), For stretching 1:0.7 (max. 1:0.6) |
| Needle | DC×27 (#11) #9~#14 |
| Thread trimming device | Exclusive pneumatic side cutter |
| Lubrication | Automatic |
| Lubricating oil | JUKI MACHINE OIL 18 (equivalent to ISO VG18) |
| Compressed air | 0.5MPa |
| Power consumption | 590VA |
| Power requirement | Single-phase 200~240V, 3-phase 200~380V |
| Machine weight | Long-table type (L): 160kg (with stacker) |
| Short-table type (S): 110kg (with stacker) | |
| Dimensions | Long-table type (L) with stacker: 1,800mm (W) × 790mm (D) × 880mm (H) Long-table type (L) without stacker: 1,500mm (W) × 790mm (D) × 880mm (H) (When the Cloth table (KM-5) is used, the width is 2,100mm for the machine with a stacker, or 1,800mm for the one without a stacker.) Short-table type (S) with stacker: 790mm (W) × 875mm (D) × 880mm (H) Short-table type (S) without stacker: 790mm (W) × 575mm (D) × 880mm (H) |
* "sti/min" stands for "Stitches per Minute."
When you place orders
Gauge
ASN-690L
ASN-690S
| Guage | THROAT PLATE | |
|---|---|---|
| Figure |  |
|
| Overedging width(mm) | P/N | Remarks |
| 4.0 | 40082223 | E |
| 4.8 | 40082224 | F |
| 5.6 | 40082225 | G |
| Guage | MAIN FEED DOG | DIFFERENTIAL FEED DOG | AUXILIARY FEED DOG | PRESSER FOOT ARM | PRESSER FOOT ASSY |
|---|---|---|---|---|---|
| Figure |  |
 |
 |
 |
 |
| P/N | G5811370000 | 40082207 | G5813370000 | G5909397000A | 40082217 |
| Guage | NEEDLE THREAD PRESSER GUIDE B | NEEDLE THREAD PRESSER PLATE C | NEEDLE THREAD PRESSER SPRING B | DIFFERENTIAL FEED CAM | NEEDLE PLATE BASE A |
|---|---|---|---|---|---|
| Figure |  |
 |
 |
 |
 |
| P/N | 13110804 | 12112504 | 12112702 | 12112603 | 40082221 |
